Vibration Isolation Educational Tool

The significance of vibration isolation lies in its ability to improve the performance, reliability, and safety of structural and mechanical systems. By reducing the impact of vibrations on these systems, the risk of damage, malfunction, and failure can be significantly reduced, leading to increased longevity and reduced maintenance cost. Additionally, in robotics, vibration isolation can improve sensor data and therefore increase reliability.

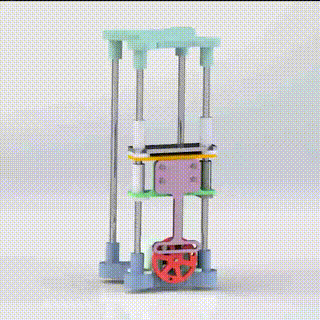

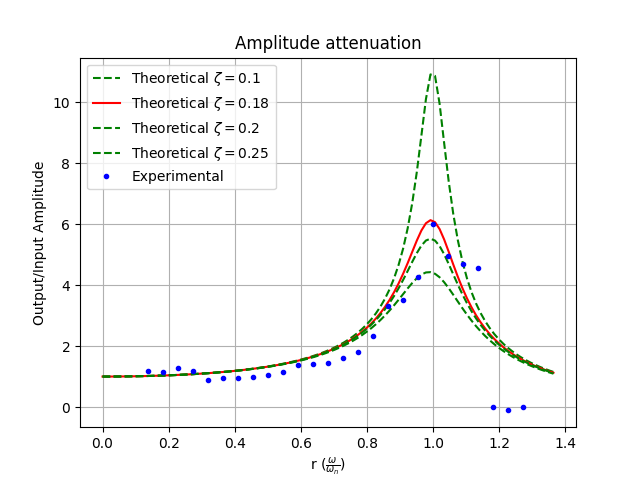

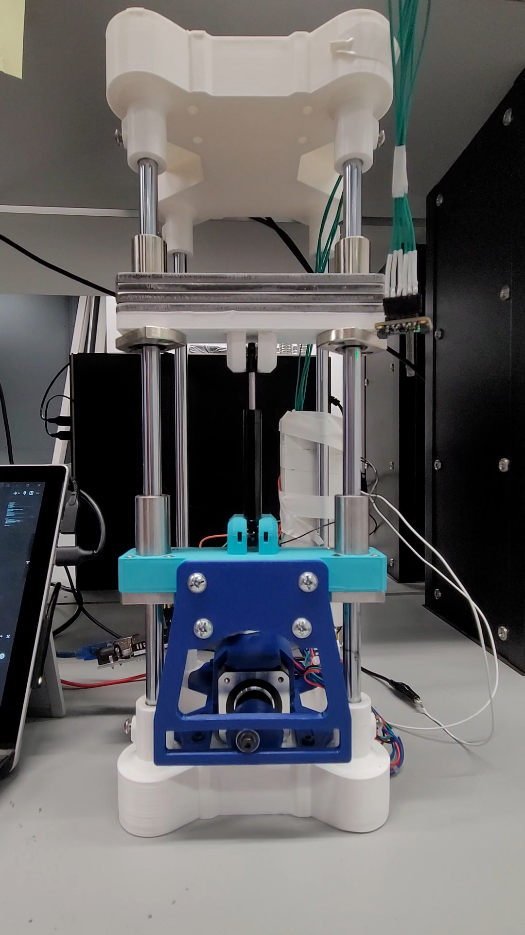

This 1DOF base excitation example is able to demonstrate resonance, attenuation, and vibration isolation, concepts that are extendable to more developed systems. By providing a known sinusoidal input, system parameters such as mass, spring constant, and damping constant can be altered to change the vibrational characteristics. This can then be compared to mathematical modelling and therefore serves as a useful tool in a vibrations class for understanding and applying the fundamentals.
